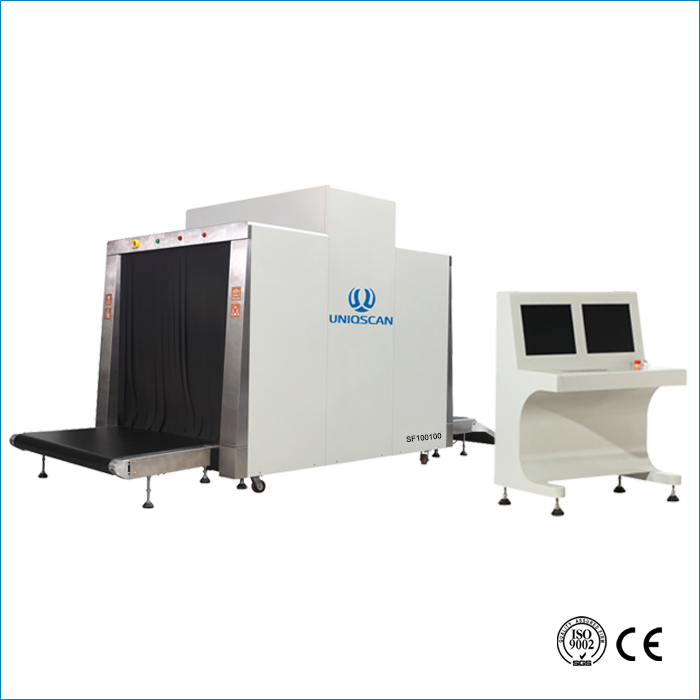

Dual Energy Security Check X Ray Luggage Scanner with Conveyor Max Load 250KG
1,Specification
※ Tunnel Size : 1000 (W) ×1000 (H) mm
※ Power Requirement: 220V AC (±10%) 50±3Hz
※ Power consumption: 1.0KW (Max)
※ Noise level: <58dB
※ Conveyor Speed: 0.22m/s
※ Conveyor Max Load: 250 kg
※ Wire Resolution: 38AWG
※ Spatial Resolution: 1.0mm Horizontal and Vertical
※ Steel Penetration: 38mm
※ Single inspection dosage: < 1.6μGy
※ Leakage radiation: <0.2µGy/h
※ Film Safety: Guarantee ISO1600 Film
2. Special Features
Network Interface: Capable of connecting to LAN, an support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-siagnosis function: Give message automatically if malfunction for prompt maintenance.
3. Environment Specifications:
Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
4. X-Ray Generator Specifications:
※ Voltage: 100-160KV (Adjustable)
※ Tube Current: 0.4 ~1.2mA (Adjustable)
※ Cooling: Sealed oil bath with forced air
※ Duty Cycle: Rated for 100％Duty Cycle
※ Beam Direction: Downward
※ Beam Angle: 80°
※ Detector: L-shaped Array
5. Operating environment:
◇ Operating temperature:0℃-45℃/ 20%~95% (Non-condensing)
◇ Storage temperature: -20℃~60℃/20%~95% (Non-condensing)
◇ Relative Humidity: 20 to 95% non-condensing
◇ System Power: 220VAC (±10%) 50±3HZ
◇ Power Wastage:1.0 KW (Max)
◇ Noise<58DB
◇ X-RAY Sensor: L-shaped array detector, 24bit
6. Image Display:
※ 2* 19’’ High Resolution LCD Monitor
※ Display Resolution: 1280*1024;24 bit/pixel Color
※ Contrast Sensitivity: 24 Visible Levels,4096 Gray Level
※ Image storage: 100,000 pictures in real time (can be customized)
※ Zoom: 64 Times Enlarge, Whole screen continuous observation
※ Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
※ Edge enhancement: Object contour edge is more distinct
※ Super image enhancement: Image detail is more distinct
※ High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
※ Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
※ Brightening/dimming: Increase/Decrease brightness of image
※ Image recurrence: Display the previous twenty images and process any one of them
※ Image restoration: Restore image to initial status
※ Assist to detect drug and explosive powder
