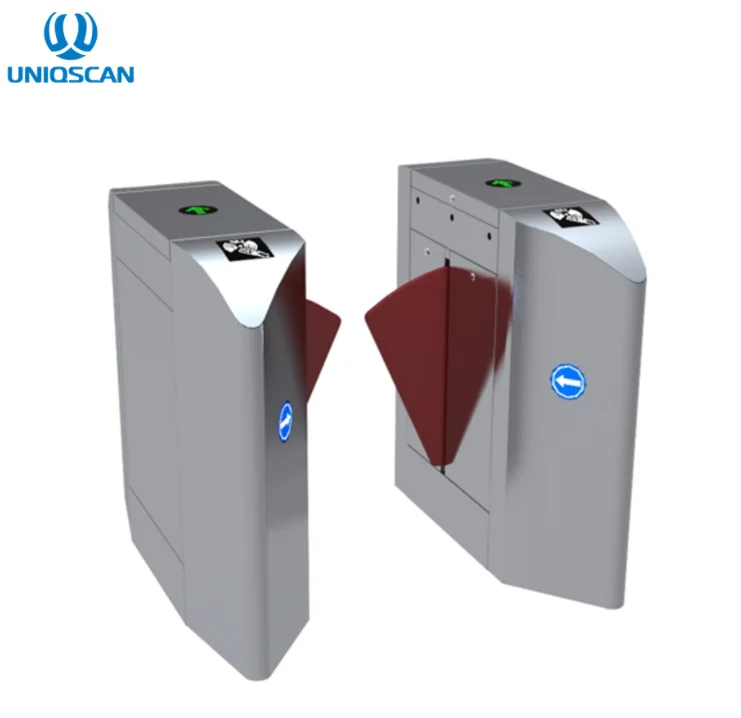

Double Motor Acrylic Flap Barrier Turnstile Counter 500mm Arm Length
Double motor flap barrier door acrylic counter turnstile gate /flap turnstile gate
Product Introduction:
Overall plate structure, the box materials using standard 304 stainless steel, double waterproof treatment.Can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting function
Technical Parameters :
| Model | UT560-C |
| Brand | UNIQSCAN |
| Dimension | 1200*300*980 mm |
| Arm length | 500mm(norm) |
| Material | 304 # stainless steel |
| Tickness | Head: 1.5mm , Cabinet:1.2mm |
| Input Voltage | AC220±10%,50HZ |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 35kg |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤600mm |
| Infrared sensor | 9 pairs |
| Operating temperature | -30ºC-70ºC |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor and outdoor |
Feature of the product:
1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function:Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set aone-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
7. The control panel with counting function, LED digital display function (optional)
8. The standard input and output interface, is the best choice for system integrators
9. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.(the standard is gate turns on 5 seconds will be automatically reset)
10. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
11. Sound, light alarm function: with trespassing, trailing alarm
12. Scour protection function ,when the gate signal is not received, the stick is automatically locked
13. Fault detection and alarm function, user-friendly maintenance and use
Detail Photo :
