Name: Integrated Electro Hydraulic Rising Bollards With PLC Control System
Brand: Uniqscan
Price: 1200 USD

Brand Name : Uniqscan

Model Number : U310

Certification : ISO ,CE

Place of Origin : CO

MOQ : 1

Price : USD 1200/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500unit per week

Packaging Details : by wood case

Control System : Integrated Electro- Hydraulic

Passing pressure : ≤80- 120 tons container trucks

Voltage： : AC220V 50Hz Integrated

Rise time : ≤3-4S （adjustable）

fall time : ≤3-4S （adjustable）

Material : 304 stainless steel

Contact Now

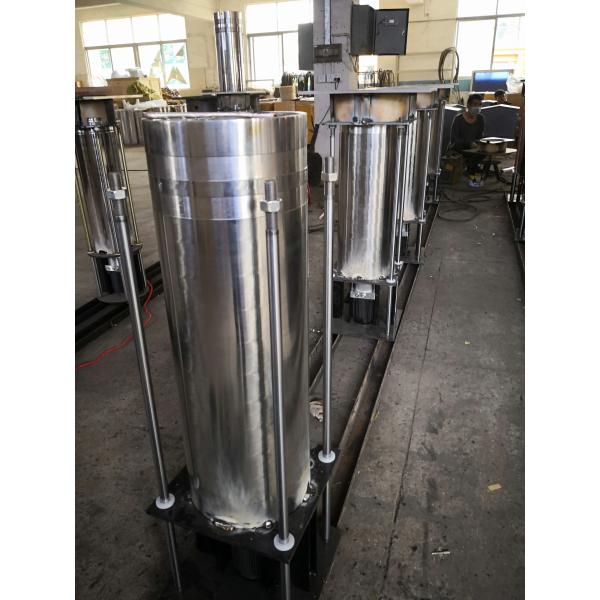

Integrated Electro Hydralic Rising Bollard

Technical Parameter

Control System	Integrated Electro- Hydraulic
Passing pressure:	≤80- 120 tons container trucks
Voltage:	AC220V 50Hz Integrated
System Dynamic power	350W Integrated
Rise time :	≤3-4S (adjustable) (adjustable)
fall time :	≤3-4S (adjustable)
Material:	304 stainless steel
Rising height:	600mm
Diameter	168mm,219mm,273mm (can be customized)
External housing size	*4304301130mm/500500900mm*
Thickness of bollard	6mm,8mm,10mm.12mm,15mm,30mm (optional)
Working Temperature :	-35℃~75℃(suitable)
Storage Environment :	10℃~65℃, Waterproof and moisture-proof
Solenoid valve voltage :	24V
Remote control distance	Approx .50m-100m
Running noise	≤60 db
Waterproof:	IP68, double sealed
Weight:	200 KG approx.

Main Function:

l Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod

l Integrated electrical mechanism :stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.

l 6k Mirror cylinder

l Colorful With LED (Acrylic light circle)

l Reflective sticker :2 strips

l Gang-control interface

l Can be manually fall down if power cut.

l Available to reverse operation during rising or falling down

l Hydraulic drive comes with hydraulic lock

l PLC programming command control system

l LCD display ,Both Chinese and English menu.

l PLC built-in encryption system
