LED Display Walk Through Metal Detector Door Infrared Temp Checking 4-8KHZ

Infrared Temperature Checking Scanner Walk Through Metal DetectorDoor

Introduction:

Non-contact human body infrared temperature measurement and security door, which integrates temperature measurement

and metal detection. When passing the metal security door, first perform infrared human body temperature measurement,

screen for heating targets, and sound alarm; suitable for subways, stations where people flow, Schools, factories and other

high-frequency entrances and exits.

Parameters:

• Product model: Temperature Testing Walk Through Metal Detector
• Dimension: 2200mm (H) X800mm (W) X580mm (D)
• Channel size 2010mm (H) X700mm (W) X500mm (D)
• Machine weight: 65KG
• Security inspection area 6-18 zone
• Security check sensitivity adjustable from 0 to 99
• Test distance: 10-15cm
• Temperature accuracy: Imported IR sensor ± 0.3-0.5 ℃
• Temperature response time 100 ms
• Working environment temperature: 5 ℃ ～ 40 ℃

Characteristic & Function:

• Panel display function: Count the number of people passing through, the number of alarms, and the number of temperature measurements. The front double pillars of the security gate have LED lights to display the location of prohibited items.
• Accurate positioning: the detection area is divided into 6 areas to detect the human body
• Power-on self-test function. When the detection door is started, the system will automatically detect and diagnose the main control system, the detection system of the left and right detection door panels, the infrared device system, the various zone probes, external devices and ports. Plug and play for easy operation.
• Comply with EMC electromagnetic radiation standards, using weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, films, video tapes, etc.
• Convenient installation: The system is an integrated design, which can be installed or removed in only 10 minutes.

Parameters :

Characteristic & Function :

1. Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
2. Test distance: 10-15cm
3. Temperature accuracy: Imported IR sensor ± 0.3-0.5 ℃

4. Temperature response time 100 ms

5. Working environment temperature: 5 ℃ ～ 40 ℃

6. Sensitivity adjustable: Each zone has 100 sensitivity level
7. Sound & LED alarm: Both Side LED indicator ,easily show where the metal is
8. Automatically count passengers and alarm times
9. Alarm strength indicator on control panel
10. Password protection, only the authorized person can operate.
11. Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to follow instruction.
12. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy,recording tapes,
13. Using high density fireproof material
14. Program Self-diagnostic when power on,no need initial or periodic calibration
15. Modularization design,easy for maintenance and replacement.
16. Sensitivity Test piece: One yuan Coin, omnidirectional detection
17. 4-8 hours backup battery (Option)

Applications:

• Airports
• Correctional Facilities
• Public Buildings
• Private Buildings
• Schools
• Special Events
• Loss Prevention
• Nuclear Facilities
• Transportation Terminals
• Courthouses
• Corporate Security
• Historical Landmarks

We has been supplying quality products worldwide for over 40 countries, 10 years, with wide product line consists of 4 groups, includes:

• X-Ray Baggage Scanner
• Walk Through Metal Detector
• Hand Held Metal Detector
• Under Vehicle Inspection System

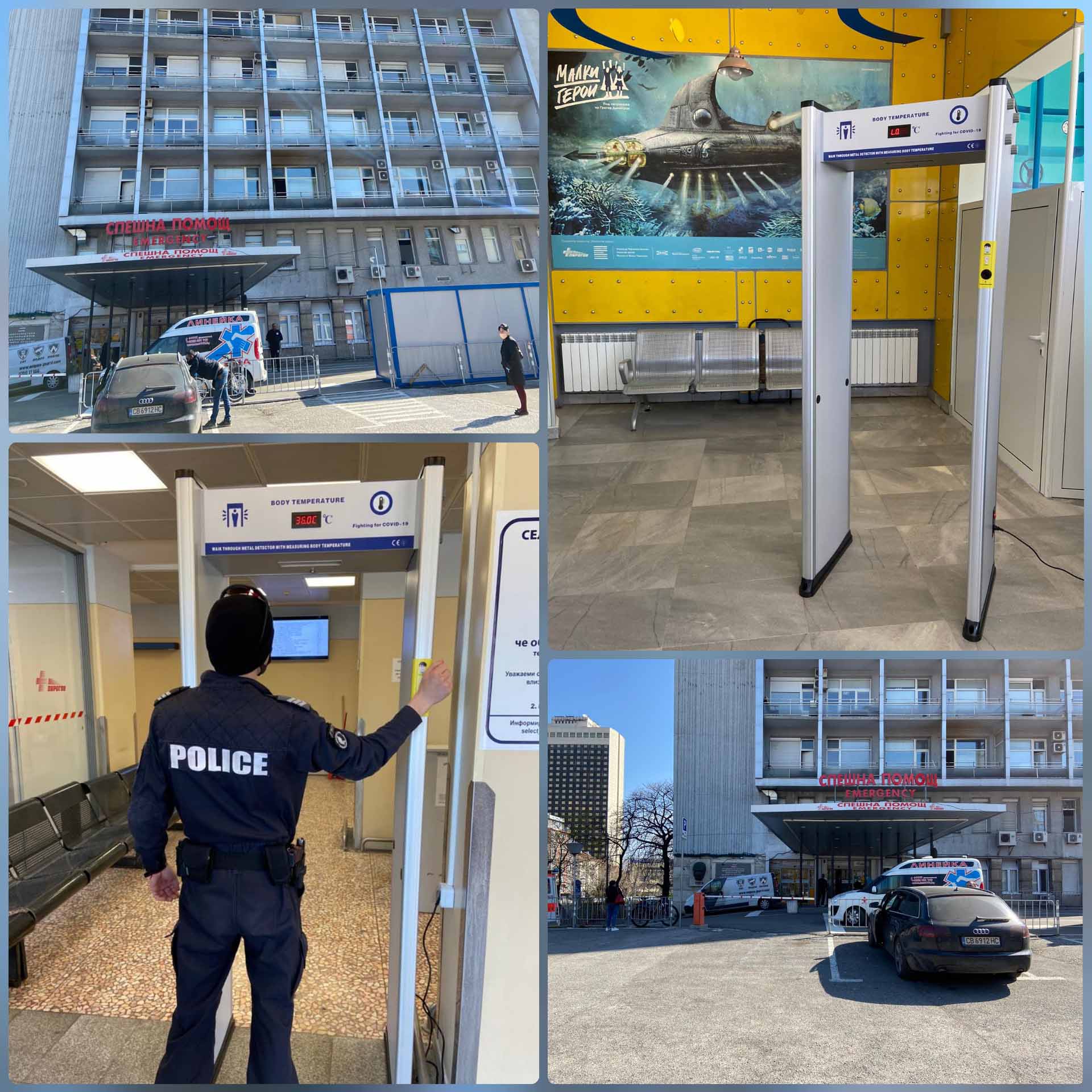

Installation Case :

walk through security scanners

walk through safety gate
