New Type 6 zones Walk-Through Metal Detector Gate With Full Body scanner 6/12/18 Zones Easy Assembly With LCD Screen
Model Number:UB600
Describtions:
- 4.3 inch LCD screen with Infrared remoter controller
- traditional analog signal control, better stability.
- Friendly windows interface, both Chinese and English program, easy to operate.
- Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
- Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)
- Detecting Zones: 6 detecting loops, can extend to 12/18zones by separate left, right, ,middle side detection to pinpoint detection(As follow picture)
- Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
- LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
- 2 set of Password protection and Lock
- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
- Integrated and modularized circuit design lead to simple installation and more convenient after services.
- Adjustable Passing speed: up to 100 persons/min
- Background light: 0-255 seconds for choose
- Calendar function: real time display year, month, date, hour, minute, second
- Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
| Technical Parameters |
| Power Supply | 220V/AC 1110V/AC |
| Power | <30V |
| External Dimension | 2290*560*190(door) |
| Passageway Dimension | 2000mm(H)*700mm(W)*550mm(D) |
| Work environment | -20°C- +40°C |
| Standard | CE; ISO |

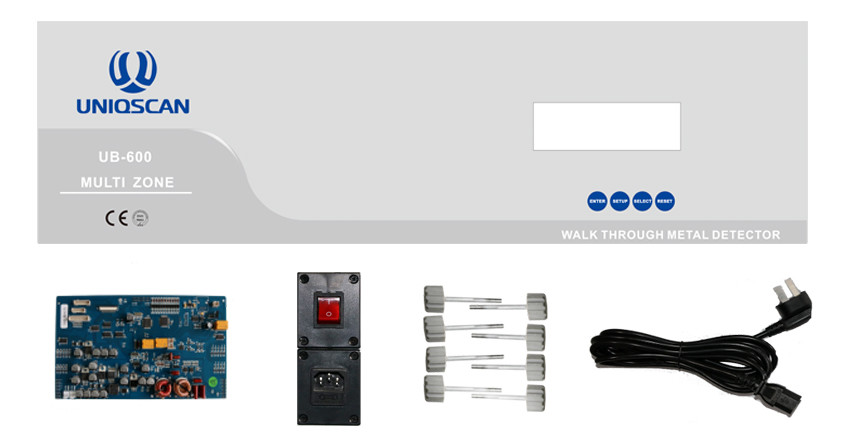

Packing list
| Detecting zone: | 6 zone |
| Display way: | 4 digital LED count |
| Sensitivity: | 0-100 adjustable |
| Power Supply: | AC85V-264V |
| Working temperature: | -20ºC--+50ºC |
| Working Frequency: | 4KHZ-8KHZ |
| Gross weight: | 67KG |
| Warranty: | 2 years |
| Standard External size: | 2200mm(H)X800mm(W)X580mm(D) |
| Standard Internal size: | 2010mm(H)X700mm(W)X500mm(D) |
| Package size for door panels: | 2260*650*260mm *1ctn |
| Package size for control unit: | 780*390*250 mm*1ctn |
Our Service
Application
1. Places which should be security examined. Such as airports, customs, harbours, stations, etc.
2. Places where prohibited metal items should be detected. Such as courts, police stations, jail,
3. Public entrances and exits to buildings and other structures.
4. Prevention of theft in the valuable metal and jewelry industries.
5. Entertainment places where dangerous items are forbidden. Such as nightclubs, theaters, ballrooms, bars, KTV, etc.
6. Any premises where entrances and exits warrant security surveillance
Succes Cases
Our Services:
1. Operation training program for end users
2. Free of factory training for engineer from agents to end user
3. If quality problems happen in guarantee period, our company will maintain for free.
4. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
5. If you are caught in some problems when using our products, welcome to contact us at any time.
