| Features |
| Dual Energy ,L-shaped array detector |
| apan HAMMATSU detector crystal , Detecting board from Deetee Finland. |

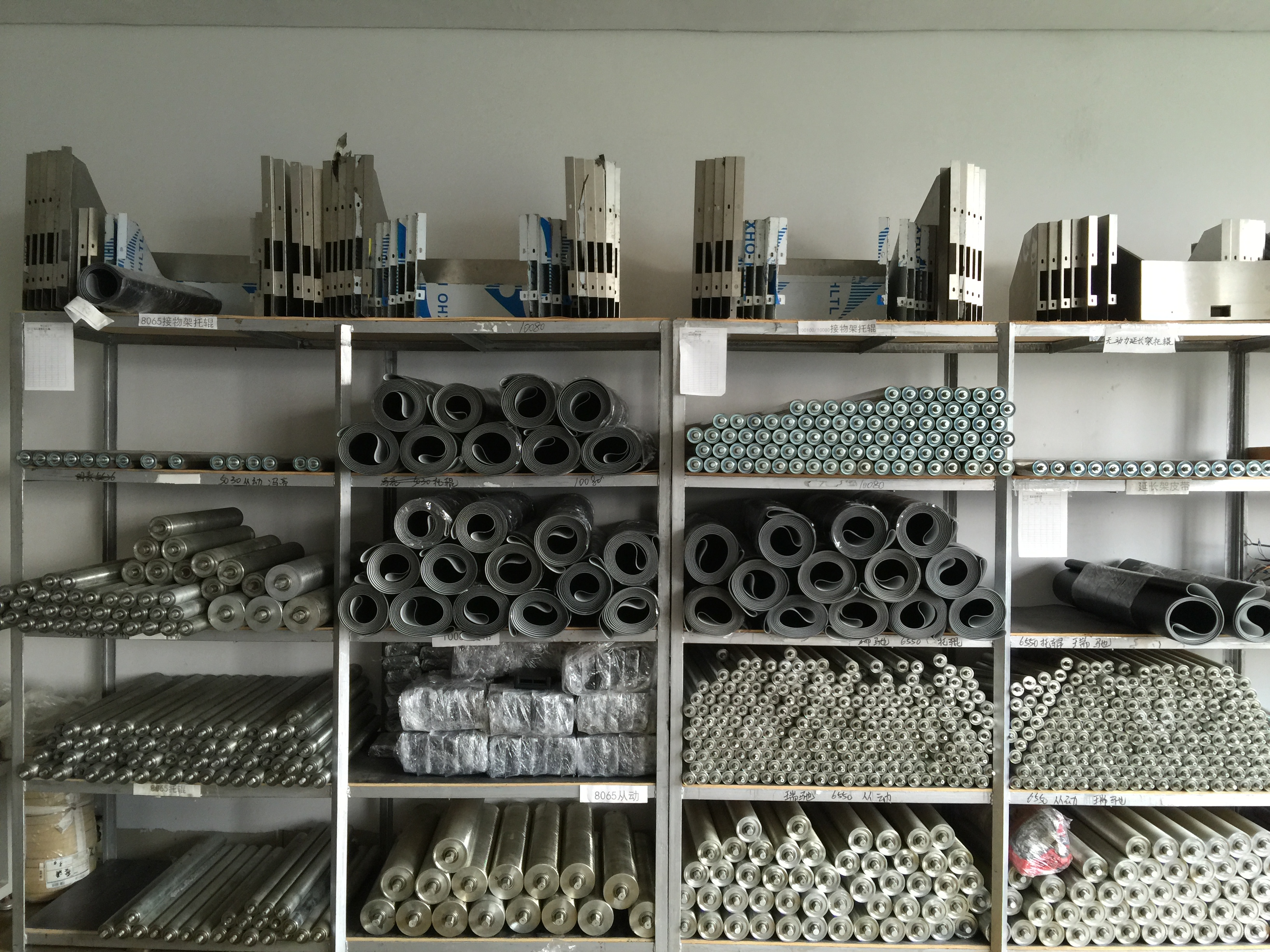

| IPC from Taiwan , Interroll Roller from German |
| High-resolution PHILIP 19 inch color LCD display |
| Four colors to distinguish organic , inorganic and dangerous material |
| Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming, |
| Image enlarge, recurrence, restoration, storage, network |
| Parameter |
| General specification | X-ray Generator | | |
| Tunnel Size : 500(W)×300(H)mm | Orientation: Upward; | | |
| Conveyor Speed: 0.22m/s | Tube Current: 0.4~1.2MA(adjustable) | | |
| Conveyor Max Load: 150 kg | Anode voltage: 100~160KV(adjustable) | | |
| Single inspection dosage:< 1.32μGy | X-ray divergence angle: 80 ° | | |
| Leakage radiation dosage:≤ 0.14µGy/h | Generator cooling/working periods: | | |
| Wire resolution: 40AWG | sealed oil bath with forced air/100% | | |
| Spatial resolution :1.0mm Horizontal ；1.0mm Vertical | X-RAY Sensor: | | |
| Steel Penetration: 38mm steel plate | L-shaped array detector, 24bit | | |
| Film safety: for ISO1600 | | | |
| Image Performance System |
| X-ray sensor---L type photodiode array detector (energy), 24 bi depth； |
| Display---High-resolution liquid crystal display, 24-bit color； |
| Color management architectures---Different color, different matter； |
| Inverse,white/black/colorized---For compare these images to find the suspected dangerous goods |
| To eliminate organic,Inorganic out---In view of the most important image; |
| Edge enhancement---The edge of image is more clear； |
| High penetration---Make the image more through, for look every goods in one image ； |
| Zoom in/zoom out---Make the image bigger ,make the image smaller； |
| 1 times size of image---Make image back to 1 times size of image; |
| Brighter/darker---Make image more bright /make image darker； |
| Replay---Playback all images on the screen at current,be able to do the next steps； |
| Application and Certifications |
| used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel ,court, prison..etc |
| Machine parts safeguard measures |
| High performance network function |
| Chinese ministry of public security testing |
| EU CE Certification |
| ISO9001 Certification |
| ISO14001 Environmental Management |
| Radiation safety certification from China Government |
