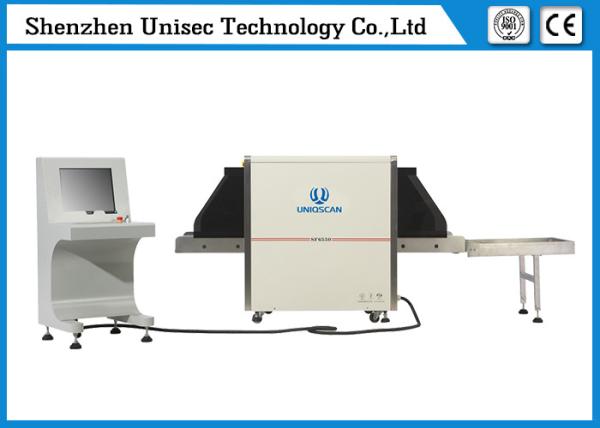

UNIQSCAN XRay Luggage Baggage Scanner Parcel Inspection SF6550 40AWG Wire Resolution
General Specifications
Tunnel Size : 650 (W) ×500 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 40mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film
X-Ray Generator
Tube Current:0.4~1.2mA(adjustable)
Anode Voltage:100~160KV(adjustable)
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100％Duty Cycle
Beam Direction: Upward
Beam Angle: 80°
Detector: L-shaped Array
Environment Specifications:
Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
Image Performance System:
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Assist to detect drug and explosive powder
19’’ High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
