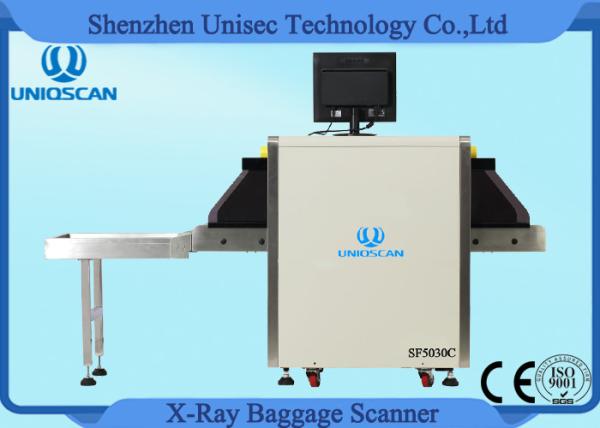

500*300mm Tunnel Baggage Scanner , Small Size Dual Energy X-ray Luggage Scanner
General Specifications:
Tunnel Size .................................................500 (W) ×300 (H) mm
Conveyor Speed.........................................0.22m/s
Conveyor Max Load...................................150 kg
Single inspection dosage..............................< 1.32μGy
Wire Resolution..........................................40AWG (0.0787mm metal line)
Steel Penetration........................................38mm
Film Safety.................................................For ISO 1600
Leakage radiation.......................................< 0.06μGy
X-RAY GENERATOR:
Orientation.................................................Upward
Tube Current..............................................0.4~1.2mA(adjustable)
Anode Voltage...........................................100~160KV(adjustable)
Angle.........................................................80°
Generator cooling/working periods.............Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT:
Storage Temperature..................................-20oC to 60oC
Operating Temperature...............................0oC to 45oC
Relative Humidity.......................................20 to 95% non-condensing
System Power........................................... 220 VAC (±10%) 50±3HZ
Power wastage..........................................1.0 KW (Max)
Noise........................................................<65DB
X-RAY Sensor........................................L-shaped array detector, 24bit, Dual energy
Multi-energy: High/low energy............Switch from high energy to low energy
Color material identification.................Organic objects in orange, inorganic objects in blue, mixture in green
Image Performance System:
Display..................................High-resolution 19 inch color LCD display
Color quality.........................24-Bit real colors based on materials
Edge enhancement................Object contour edge is more distinct
Super image enhancement......Image detail is more distinct
High penetration display........ Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display.........Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier................................Partial magnifying function
Brightening/dimming.............. ncrease/Decrease brightness of image
Image recurrence...................Display the previous twenty images and process any one of them
Image restoration...................Restore image to initial status
Image storage........................Real-time store any image and process it in operation status
