High Steel Penetration Security Baggage Scanner / Cargo x-Ray Scanning Machine

Name: High Steel Penetration Security Baggage Scanner Cargo xRay Scanning Machine
Brand: Uniqscan
Price: 1 USD

Wholesale High Steel Penetration Security Baggage Scanner / Cargo x-Ray Scanning Machine from china suppliers

Brand Name : Uniqscan

Model Number : SF5030A

Certification : CE ISO

Place of Origin : China

MOQ : 1 UNIT

Price : USD

Payment Terms : T/T

Supply Ability : 500 units per month

Delivery Time : in one week

Packaging Details : Wooden box

Product Name : Security baggage scanner

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed : 0.22m/s

Steel Penetration : 10mm

Warranty : 2 years

X-ray generator : Beijing KV Tech

Detecting board : DT Finland

Display : Color LCD display

Contact Now

High steel penetration x-ray baggage scanner cargo scanner scanning machine

Model: SF5030

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 100 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG

Steel Penetration: 40mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7mA(adjustable)

Anode Voltage:80KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

High Steel Penetration Security Baggage Scanner / Cargo x-Ray Scanning Machine

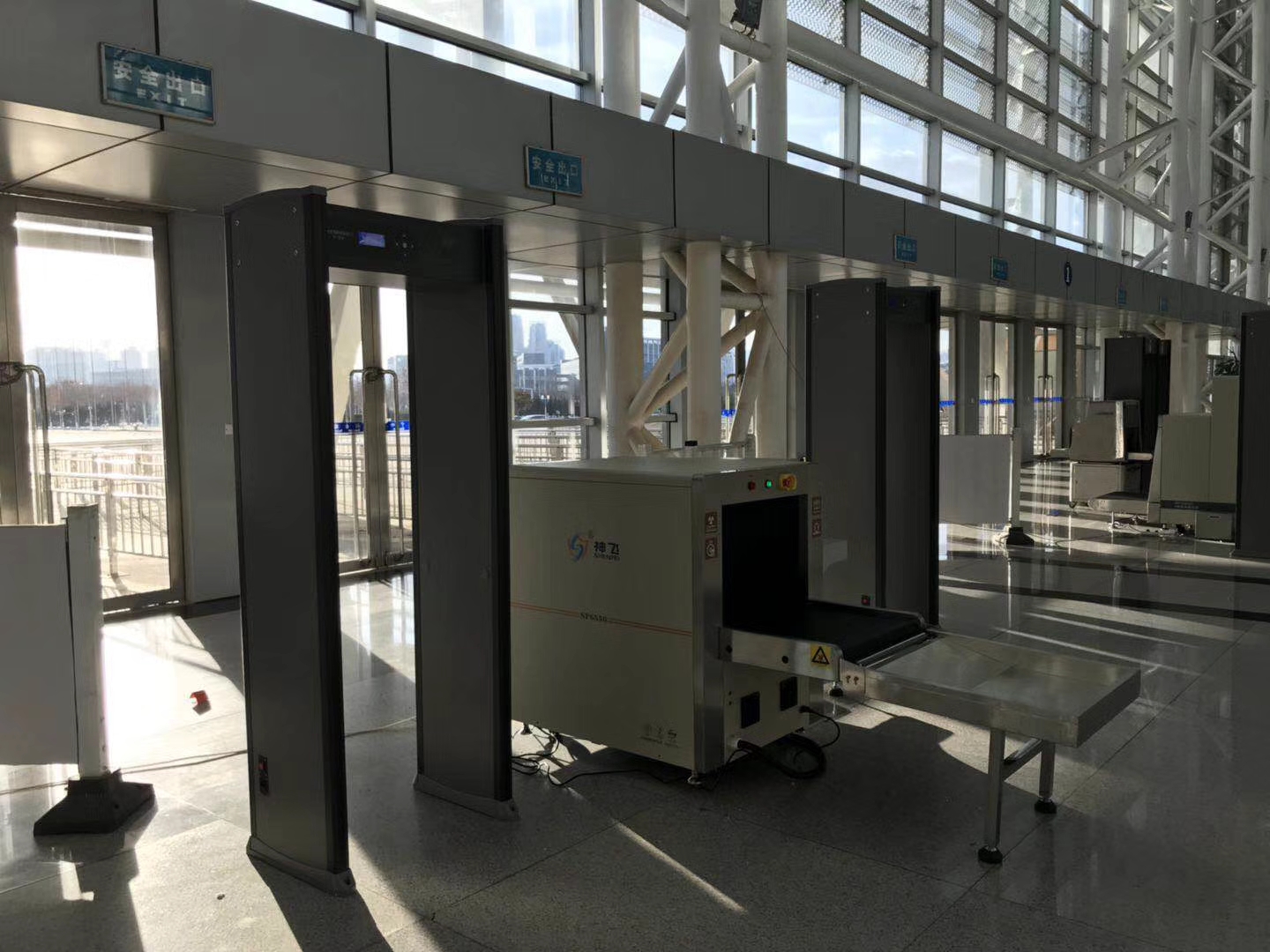

Cases

Forum for Asia 2018

Bangladesh National Museum

Guangxi Expo Center
