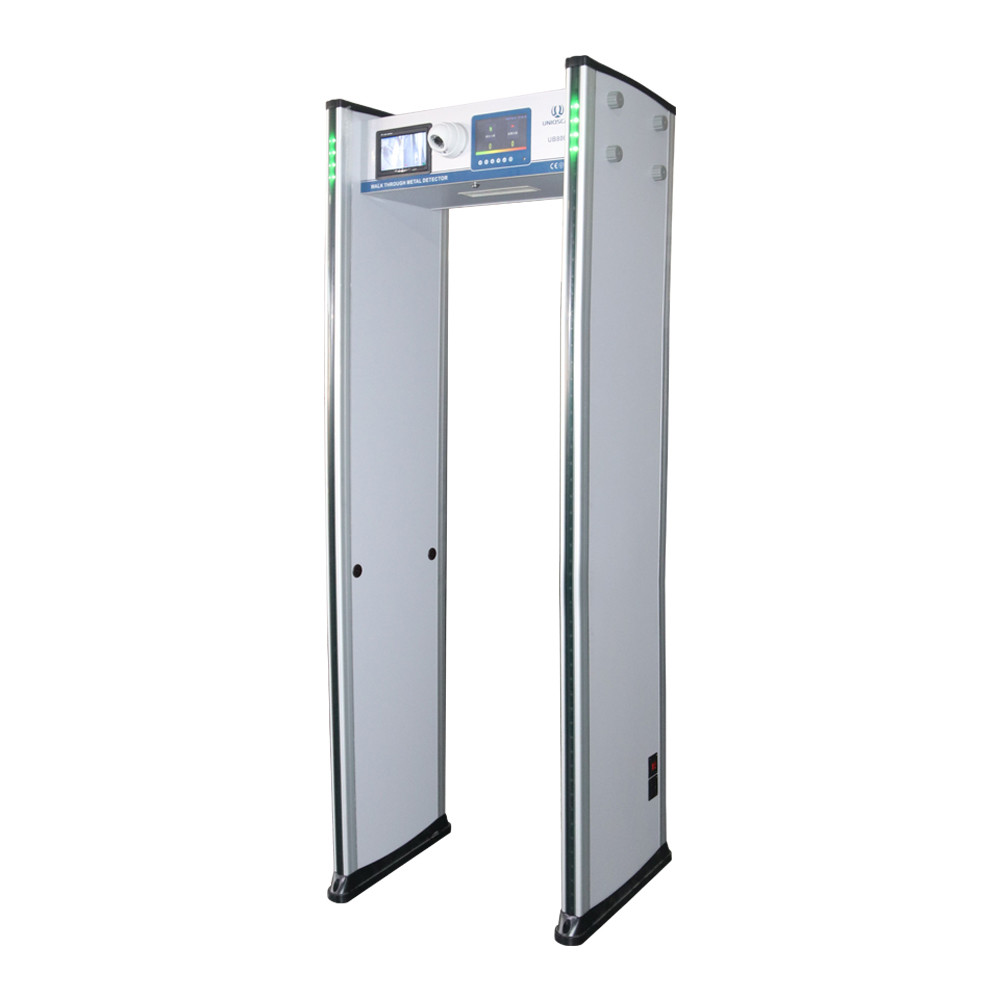

7" Screen CCTV Camera 33 Zones Door Frame Metal Detector

Product Categories

Security Baggage Scanner [251]
X Ray Baggage Scanner [257]
X Ray Luggage Scanner [127]
Airport Baggage Scanner [128]
Archway Metal Detector [144]
Door Frame Metal Detector [264]
Walk Through Metal Detector [594]
Multi Zone Metal Detector [130]
Portable Metal Detector [74]
Hand Held Metal Detector [290]
Under Vehicle Inspection Camera [49]
Under Vehicle Inspection System [222]
Hydraulic Rising Bollards [30]
Hydraulic Road Blocker [52]
Tyre Spike Barrier [74]
Security Turnstile Gate [166]
Tripod Turnstile Gate [164]
Flap Barrier Gate [260]

SHENZHEN UNISEC TECHNOLOGY CO.,LTD

Contact Now

7" Screen CCTV Camera 33 Zones Door Frame Metal Detector

Name: 7quot Screen CCTV Camera 33 Zones Door Frame Metal Detector
Brand: Uniqscan
Price: 500 USD

Wholesale 7" Screen CCTV Camera 33 Zones Door Frame Metal Detector from china suppliers

Brand Name : Uniqscan

Model Number : UB800+CCTV

Certification : CE; ISO9001; RoHs;

Place of Origin : China

MOQ : 1 UNIT

Price : EXW 500usd/unit to 1500usd/unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000pcs per month

Delivery Time : 5-7 days if stock

Packaging Details : carton box

Product Name : Walk Through Body Scanner Gate

Material : High density wood

Sensitivity : 999 Sensitivity Level

Display : 7 inch color LCD screen

Weight : 70kg

Power supply : AC85V-264V

Feature : CCTV Cameras

Warranty : 2 years

Keyword : Infrared remote control

Detecting Zones : 33 Zones

Contact Now

33 Zones 7 Inch Color LCD Screen Walk Through Security Body Scanner Door Frame Metal Detector Gate With CCTV Camera

Parameters :

Detecting zone:	33/36 zone
Display way:	7 inch color LCD screen
Sensitivity:	0-999 adjustable
Detecting speed:	up to 100 passenger/ min.
Working temperature:	-20ºC--+50ºC
PASS and ALARM count:	up to 99999
Gross weight:	67KG
Warranty:	2 years
Standard External size:	2200mm(H)X800mm(W)X580mm(D)
Standard Internal size:	2010mm(H)X700mm(W)X500mm(D)
Package size for door panels:	2260650260mm *1ctn
Package size for control unit:	780390250 mm*1ctn

CHARACTERISTIC & FUNCTION:

33 detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable: Each zone has 999 sensitivity level 0-999 adjustable
7 inch color LCD screen
Infrared remote control
Using high density fireproof material
Automatically count passengers and alarm times
PASS and ALARM count: up to 99999
High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
15 preset programs for security applications
Alarm volume range from level 0 to 9
Alarm tones: Change from 1 to 9
100 frequencies for option. To work with neighbouring gates at 50cm
Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
Detecting speed: up to 100 passenger/ min.
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws,
Modularization design,easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
Network support
Can be customized 36 zones
4-8 hours backup battery (Option)

Specification of Camera and DVR :

Camera: 2 adjustable infrared cameras , one for entry , one for exit
Video Input : 2 channel
Video output : 1 channel
USB slot
SD card slot
Screen: 7" LCD colored with IR remote control
Resolution : 1280*720
Audio input : 2 channel Audio output: 1 channel
Working mode : video and recording mode-auto/manual
Mermory : support 128G removable sd card Power consumption : 5-30V
Language : English/Chinese
DVR Size : 2.6''x 3.5'' in die cast aluminium body
Remote controller IR for control of complete menu on screen display

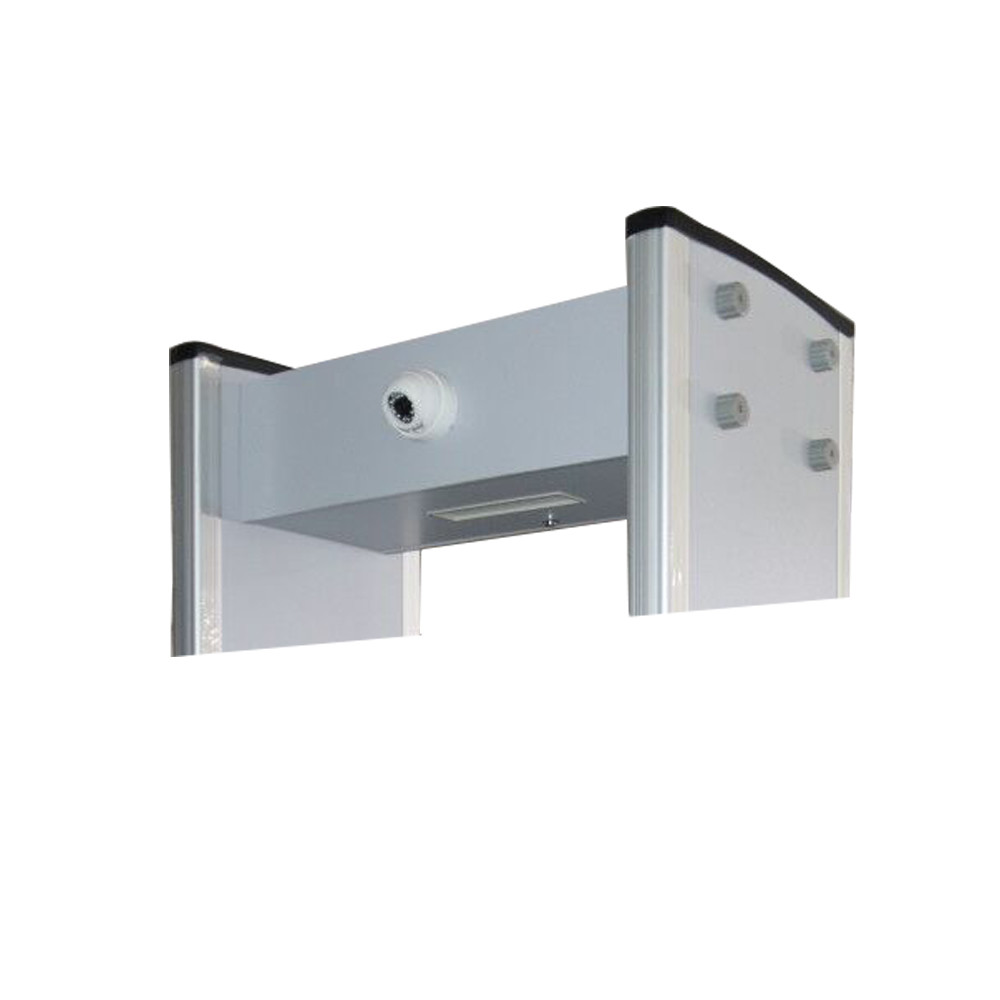

Detail Photo :

7" Screen CCTV Camera 33 Zones Door Frame Metal Detector

Shipment:

Payment terms	T/T, Western Union, Cash,L/C
Shipping methods	By air (5-7days, most expensive)
	By express (3-7days, more expensive)
	By sea (15-28days, cheapest)

About Us:

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
