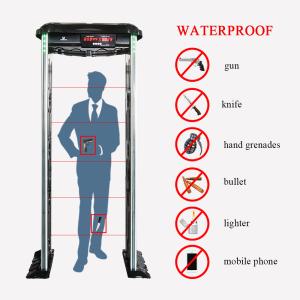

ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit

ABS Material Waterproof IP65 Arch Walk Through Gate Suit For Security Checking

【TECHNICAL PARAMETERS】

External Dimensions:229cm (High) x 56cm (Wide) x 19cm (Deep)

Input voltage: AC85V-264V, 50/60Hz Power: <30W

Gross weight: 63.5KG

Working temperature: -20℃~ 50℃

Sensitivity: 100 steps adjustable

Alarm: Visible and audible alarm

Inner Dimensions: 200cm(High) x 70cm (Wide) x 60.5cm (Deep)

【Characteristic & Function】

New Design ABS Material Waterproof Arch Walk Through Metal Detector
1.Six mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.Appearance design is ABS Material, good looking appearance. The gross weigh is light than other type walk through metal detector.
15. Waterproof:IP65, Can be used in indoor and outdoor, no matter is rainy or snowy.
16.4-8 hours backup battery (Option).

Neutral Packing:
Q'TY: 1 PC
N.W.: 53.5KGS
G.W.: 60.5 KGS
MEAS.: 2260*580*200mm+1025*820*400mm=0.467CBM
2 Doors Panel Packed In 1 Carton Box:2260*580*200mm
Main Control Box Packed In 1 Carton Box:1025*820*400mm

Our advantage

1.Product design, technology development, parts processing and sales integration services
2.One of the world's top four brands, leading technology, quality first, service first-class
3.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need

4. Brands cooperation,ODM,OEM
5.Sales of a complete set of technical solutions
6.Technical guidance and training for customers

Our service

1. Technical support and 2 Years warranty
2. Documents support
3. Customer clearance assistance
4. Support OEM OrODM
5. 100% quality guarantee
6. 7 days/24 hours service

Applications

Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails, Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs, secret Meetings and VIP Security, Gymnasium

Company profile

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.

We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.
